Olympus E-620

	Product Tour Summary
• Very compact design means enhanced portability, but handling issues for the large-landed • Construction feels solid, but lacks weather-resistant seals • Direct one-button access to Live View mode • Several (though not all) buttons backlit, handy for night shooting • Articulated LCD for flexible shooting positions
	Introduction	Page 2 of 17	Color

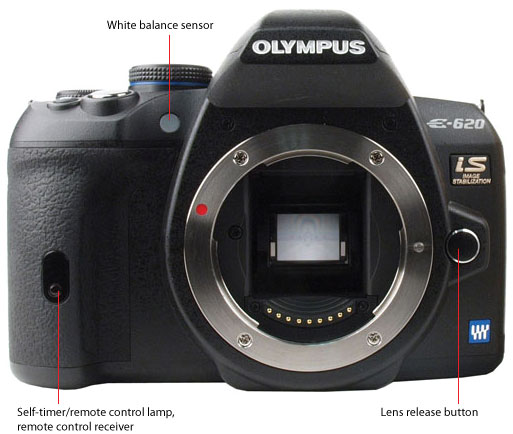

Front

	White balance sensor
Self-timer/remote control lamp, remote control receiver
				Lens release button

Back

Viewfinder

AEL/AFL

Power switch

Programmable Fn button / playback zoom in

Info

Autofocus target/ playback zoom out

Menu

Playback mode

Live view

Memory card access lamp

Image stabilization

Delete

2.7-inch 230,000-dot articulated LCD

USB /Video out

4-way controller offers direct access to (from top, clockwise) white balance, autofocus, ISO and metering mode

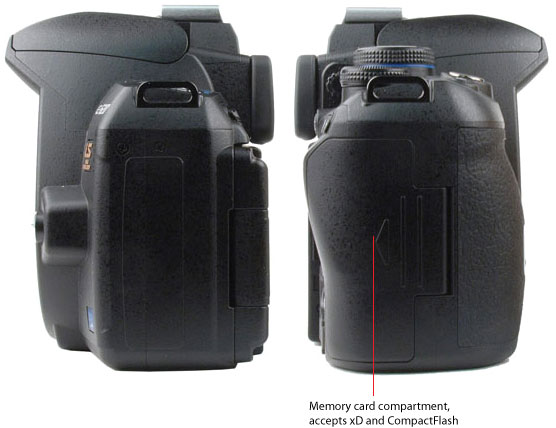

Sides

		Memory card compartment, accepts xD and CompactFlash

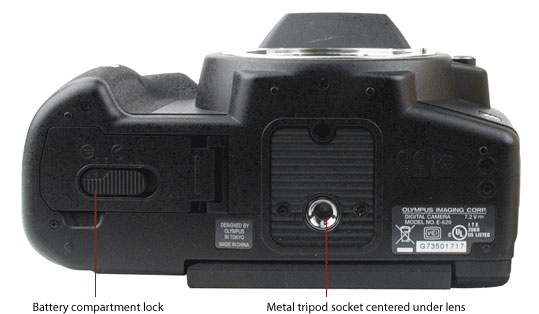

Bottom

	Battery compartment lock		Metal tripod socket centered under lens

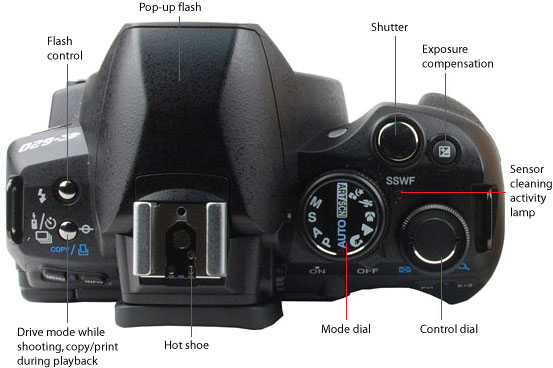

Top

Pop-up flash

Shutter

Flash control

Exposure compensation

Sensor cleaning activity lamp

Mode dial

Control dial

Drive mode while shooting, copy/print during playback

Hot shoe

Size Comparisons

Front
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90
Price: $799.99  (w/14-42mm lens)	Price:   $1299 (body only)	Price: $599.99 (w/ 18-55mm lens)	Price: $599.95 (w/ 18-55mm  lens,flash)	Price:   $999 (body only)
Back
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90
Width: 5.11 in/129.8mm	Width:   5.6 in/141.5mm	Width:   4.96 in/126.1mm	Width:   4.8in/122mm	Width:   5.8 in/147mm
Top
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90
Depth: 2.36 in/59.9mm	Depth:   2.95 in/75 mm	Depth:   2.4 in/ 61.9mm	Depth:   2.7 in/67 mm	Depth:   3 in/77mm
Left
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90
Height: 3.7 in/94.0mm	Height:   4.23 in/107.5mm	Height:   3.8 in/97.5mm	Height:   3.6 in/91mm	Height:   4.1 in/103mm
Right
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90
Weight: 16.64 oz./472 g	Weight:   23.1 oz/655g	Weight:   15.9 oz./ 450g	Weight:   18.5 oz/ 524g	Weight:   22 oz./620g
Bottom
Olympus E-620	Olympus E-30	Canon Rebel XS	Pentax K2000	Nikon D90

In the Box

The Olympus E-620 comes in three configuration. The body alone sells for $699.99; a kit priced at $799.99 includes a single 14-42mm f/3.5-5.6 lens; a third kit (shown here), priced at $899.99, adds a 40-150mm f/4.0-5.6. The following components are included:

• Camera body with body cap attached
• 2 lenses with rear covers attached
• Rechargeable Lithium-ion BLS-1 battery
• BCS-1 battery charger
• Camera strap
• USB cable CB-USB6
• Video cable CB-VC2
• Eyepiece cover
• Olympus Master 2 CD
• 3 Instruction Manuals (English, Spanish, French)
