Canon EOS Rebel T1i

	Product Tour Summary
• Lack of body space requires many buttons to have multiple uses • Small and easy to carry • Slightly larger and heavier than the Rebel XS
	Introduction	Page 2 of 21	Color

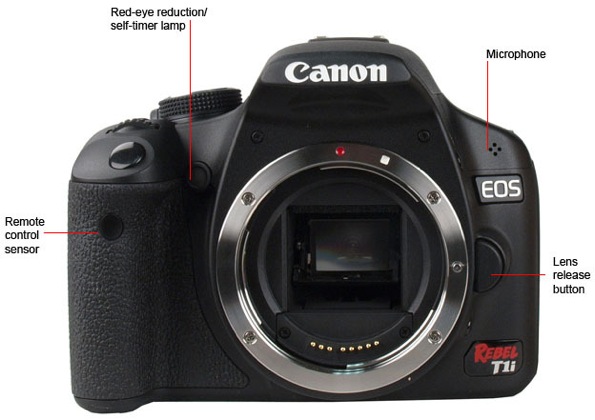

Front

		Red-eye reduction/ self-timer lamp
				Microphone
Remote control sensor
					Lens release button

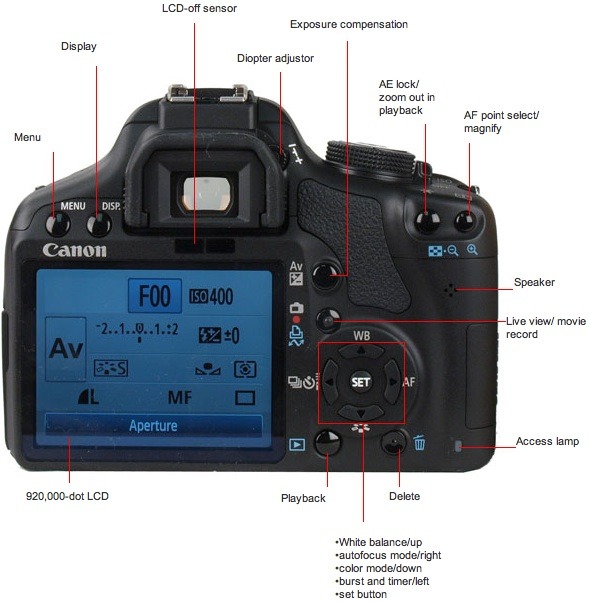

Back

LCD-off sensor

Exposure compensation

Display

Diopter adjustor

AE lock/ zoom out in playback

AF point select/ magnify

Menu

Speaker

Live view/ movie record

Access lamp

920,000-dot LCD

Playback

Delete

•White balance/up •autofocus mode/right •color mode/down •burst and timer/left •set button

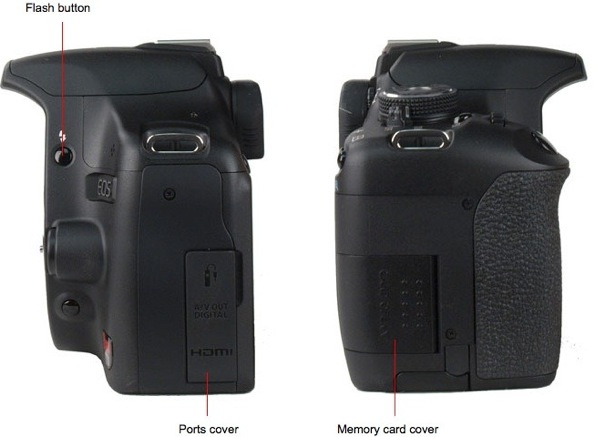

Sides

	Flash button
			Ports cover		Memory card cover

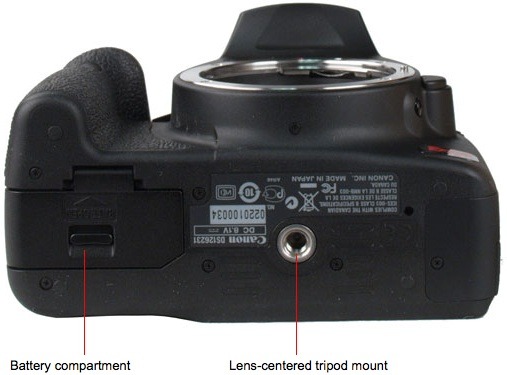

Bottom

	Battery compartment		Lens-centered tripod mount

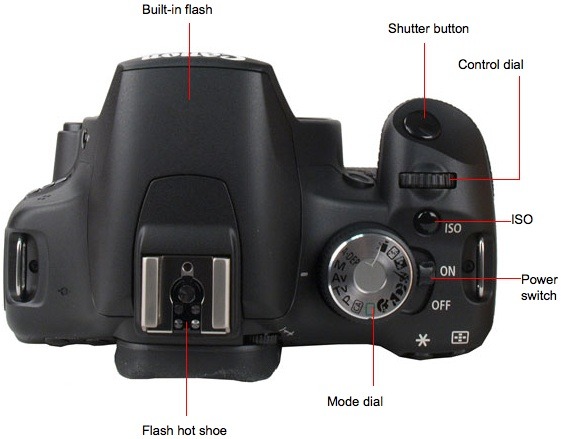

Top

Built-in flash

Shutter button

Control dial

ISO

Power switch

Mode dial

Flash hot shoe

Size Comparisons

Front
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000
Price: $899.99 (w/ 18-55mm IS lens)	Price: $599.99 (w/ 18-55mm lens)	Price: $849.95 (w/ 18-55mm VR lens)	Price: $999 (body only)	Price: $599.95 (w/ 18-55mm lens, flash)
Back
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000
Width: 5.1 in/129.1mm	Width: 4.96 in/126.1mm	Width: 5.0 in/127mm	Width: 5.8 in/147mm	Width: 4.8 in/122mm
Top
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000
Depth: 3.1 in/77.9mm	Depth: 2.4 in/ 61.9mm	Depth: 3.1 in/80mm	Depth: 3 in/77mm	Depth: 2.7 in/67 mm
Left
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000
Height: 3.9 in/98.9mm	Height: 3.8 in/97.5mm	Height: 4.1 in/104mm	Height: 4.1 in/103mm	Height: 3.6 in/91mm
Right
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000
Weight: 16.9 oz/480g	Weight: 15.9 oz./ 450g	Weight: 19.8 oz/560g	Weight: 22 oz./620g	Weight: 18.5 oz/ 524g
Bottom
Canon Rebel T1i	Canon Rebel XS	Nikon D5000	Nikon D90	Pentax K2000

The T1i is part of Canon's extremely successful Rebel line of entry-level cameras, and the first Rebel to offer video capabilities. For comparison models, we've chosen the lowest priced Rebel model (the XS), Nikon's new sub-$1000 SLR with video recording (the D5000), the slightly higher end Nikon D90 (which also has video recording capability), and the inexpensive Pentax K2000. These four cameras give a good cross-section of the current market for consumer SLRs, with varying levels of functionality.

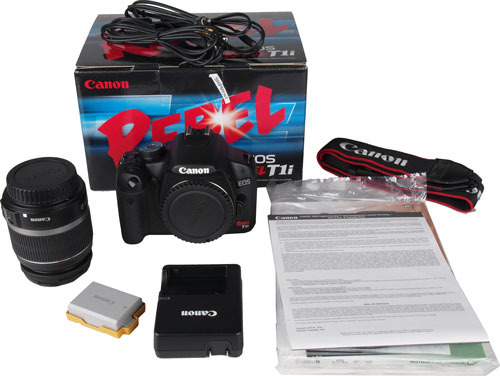

In the Box

• EOS Rebel T1i Body
• EF-S 18-55mm f/3.5-5.6 IS Lens
• Eyecup Ef
• C. Wide Strap EW-100DBIII
• USB Interface Cable IFC-200U
• AV Cable AVC-DC400
• Battery Pack LP-E5
• Battery Charger LC-E
• EOS Digital Solution Disk and Instruction Manuals
• "Great Photography is Easy" Booklet and "Do More with Macro" Booklet
